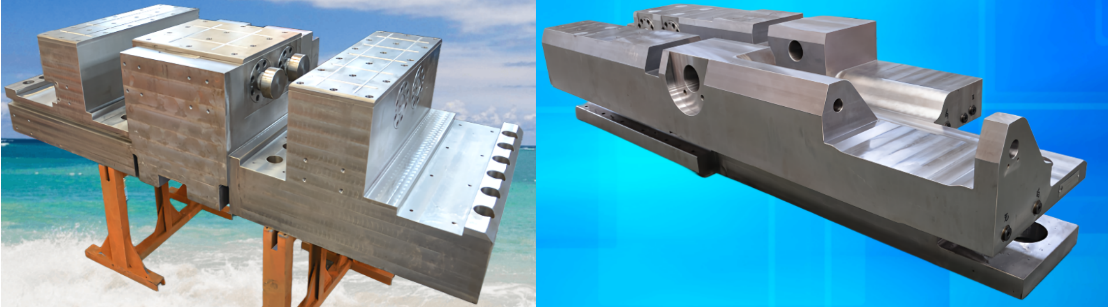

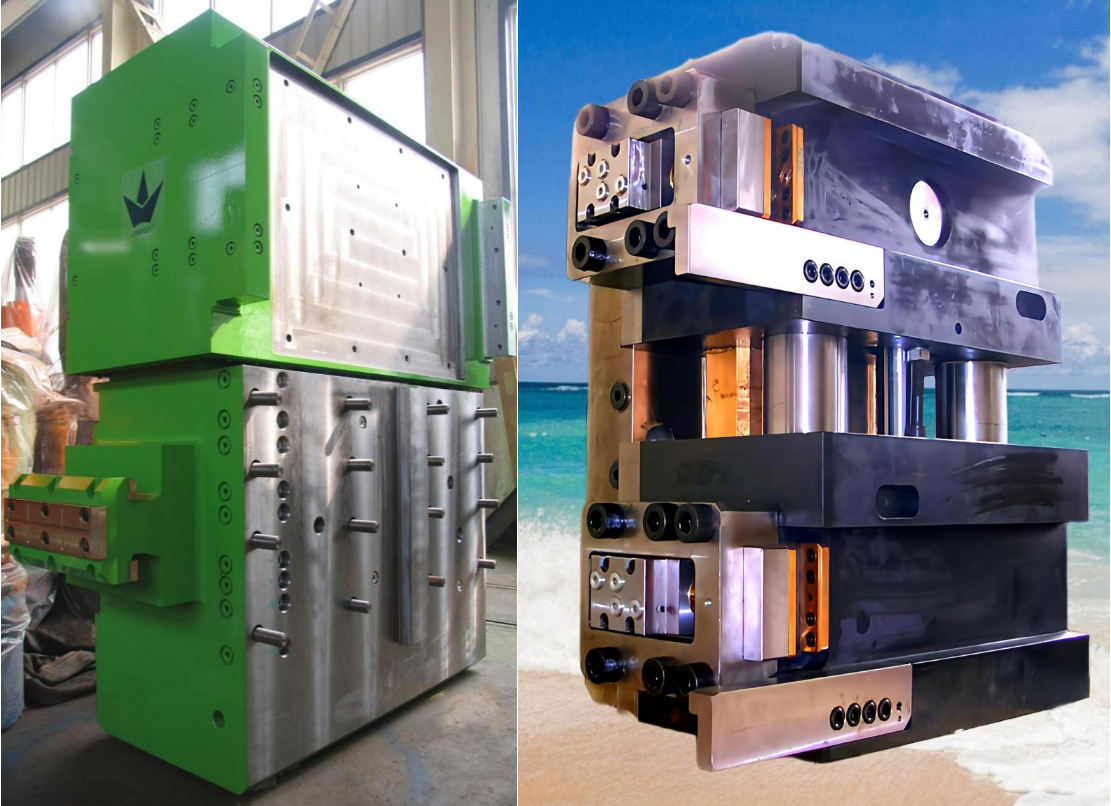

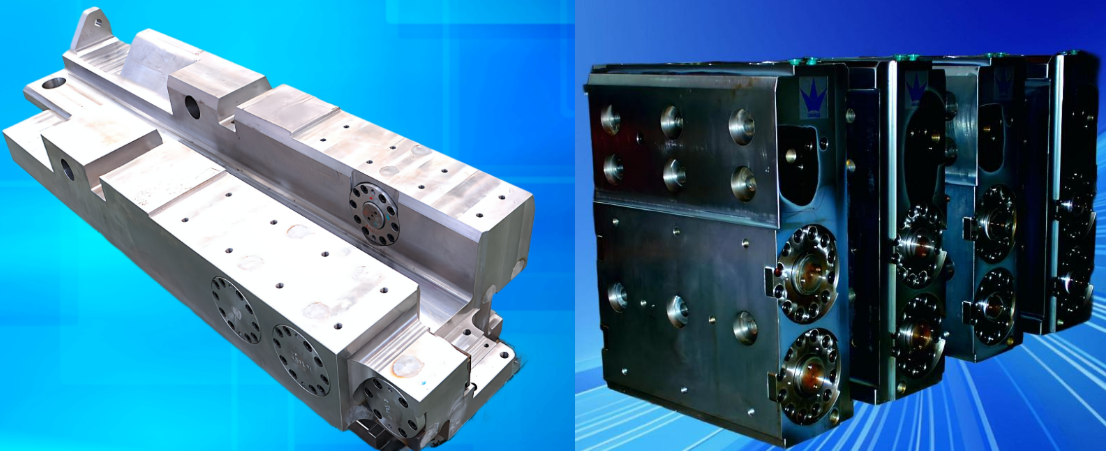

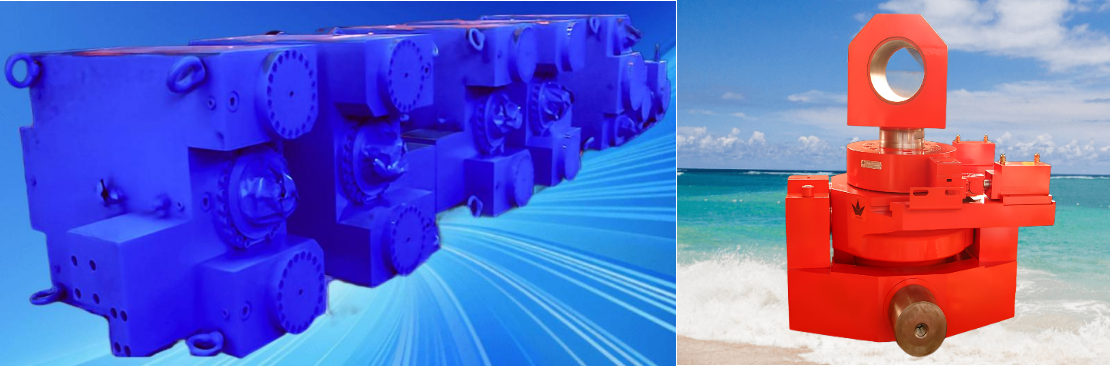

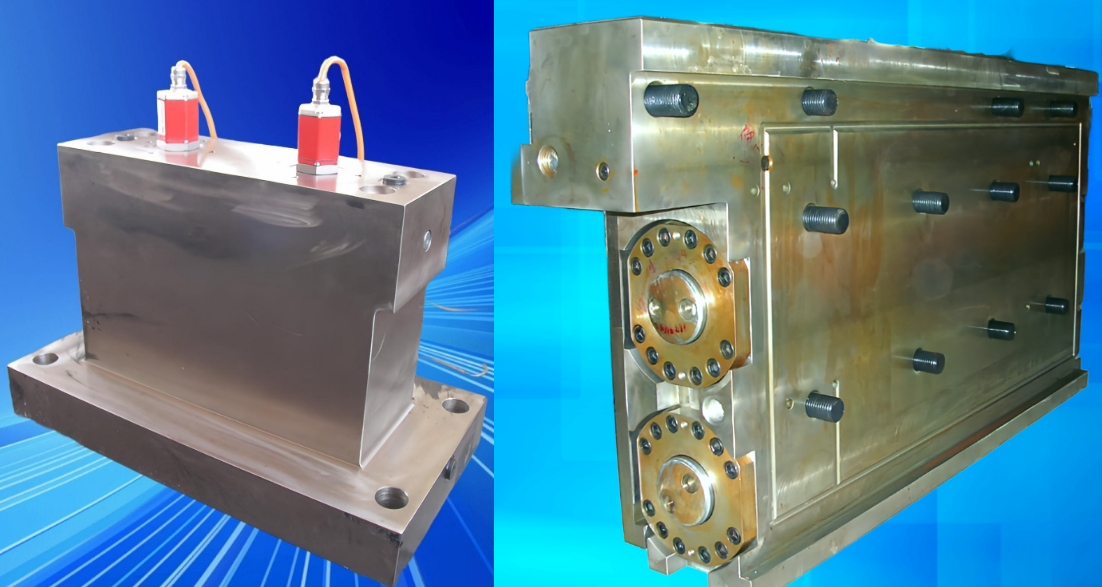

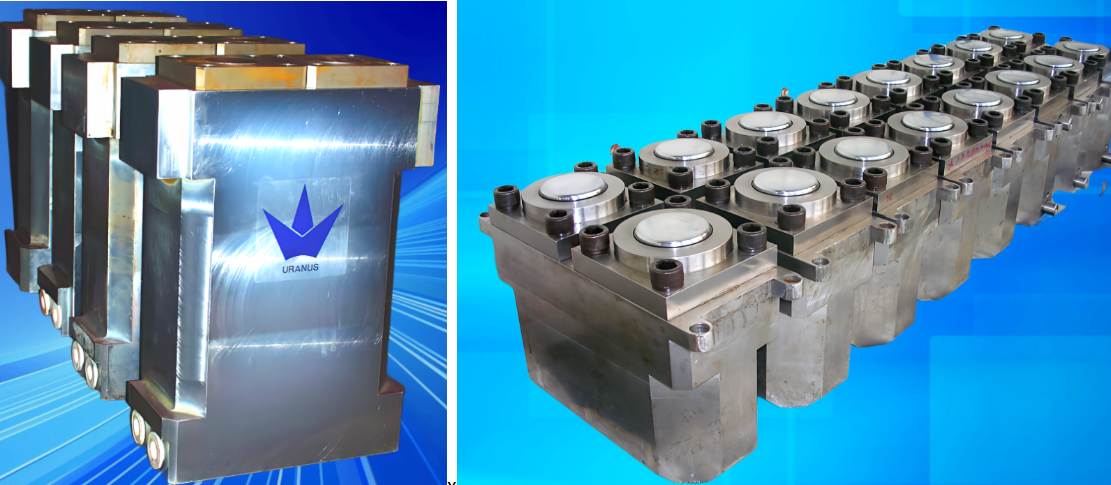

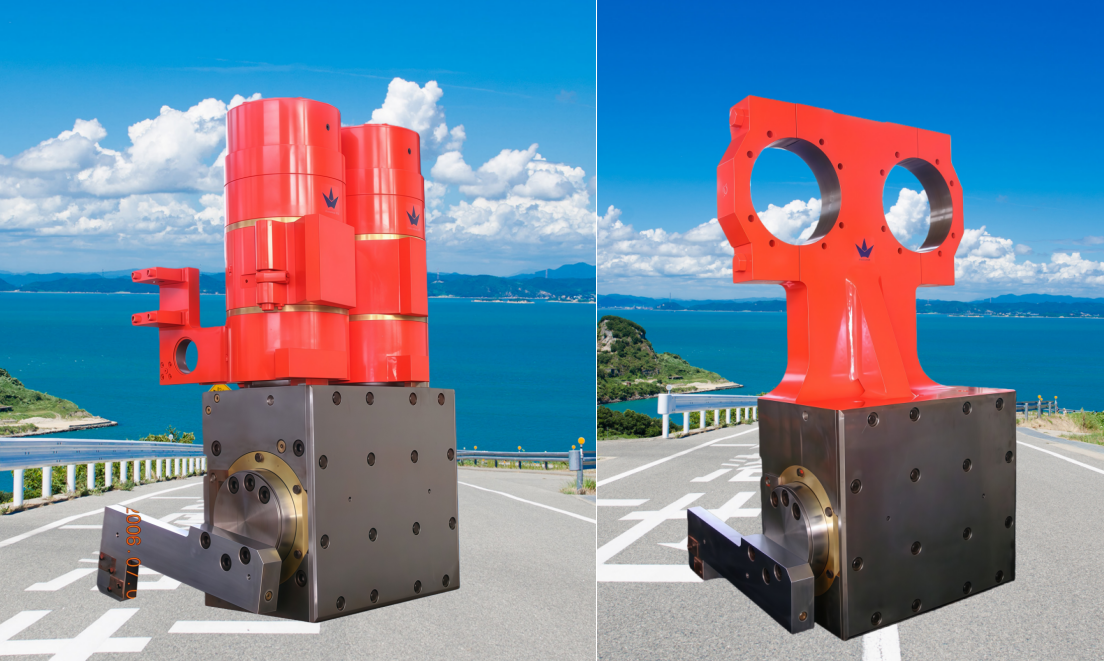

Photos of Hydraulic Cylinder Blocks

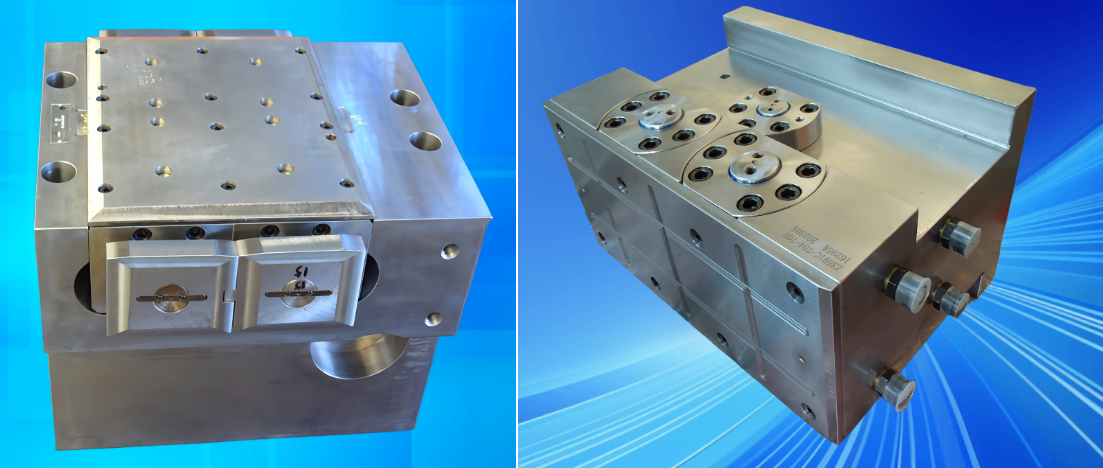

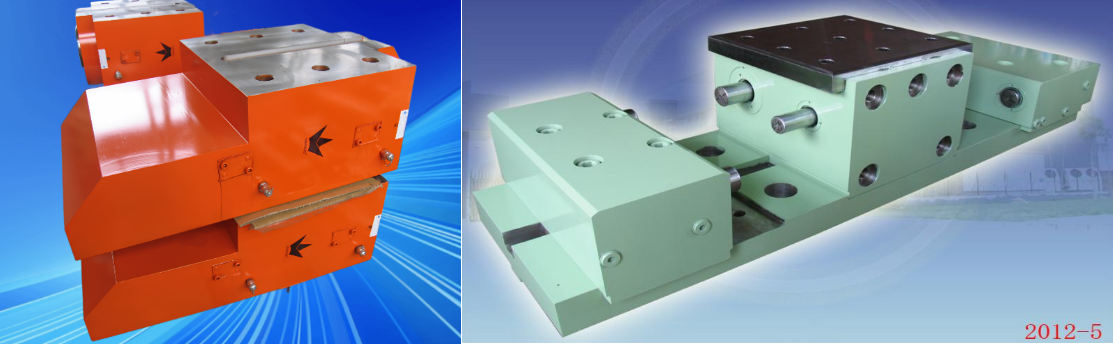

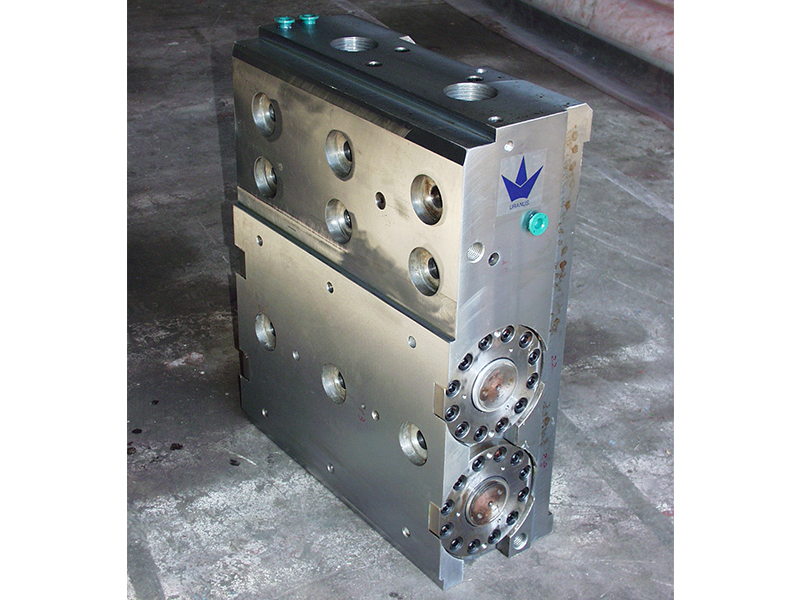

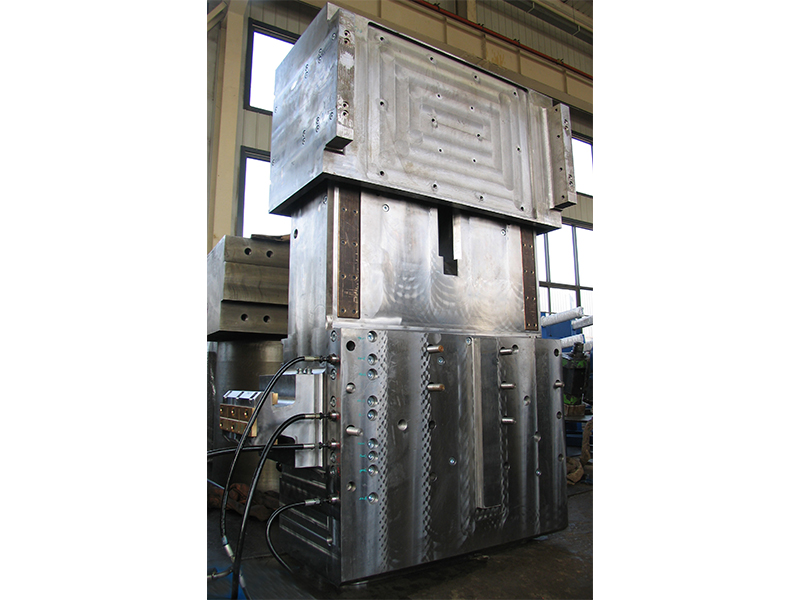

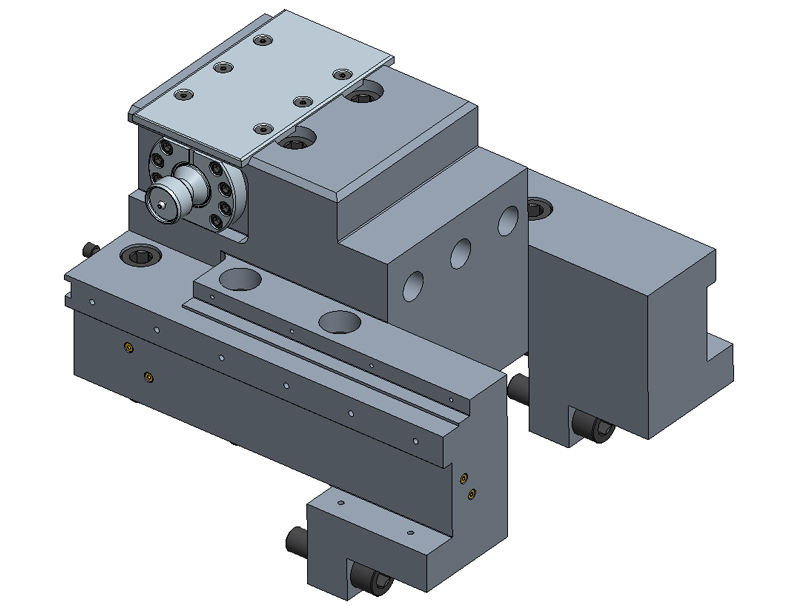

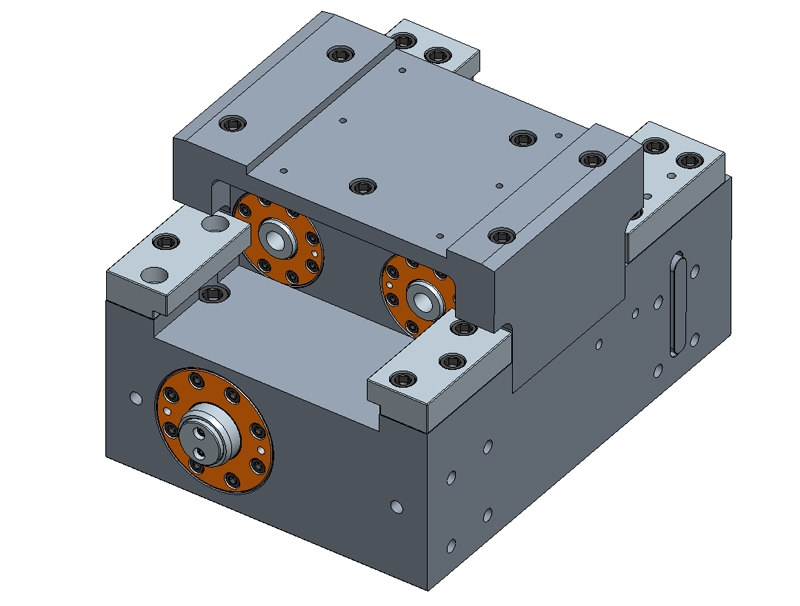

Hydraulic Cylinder Blocks
Uranus has independently designed and manufactured a diverse range of hydraulic cylinder blocks for metallurgical rolling mills for nearly 30 years. We have delivered over 3,000 hydraulic cylinder blocks globally, including:

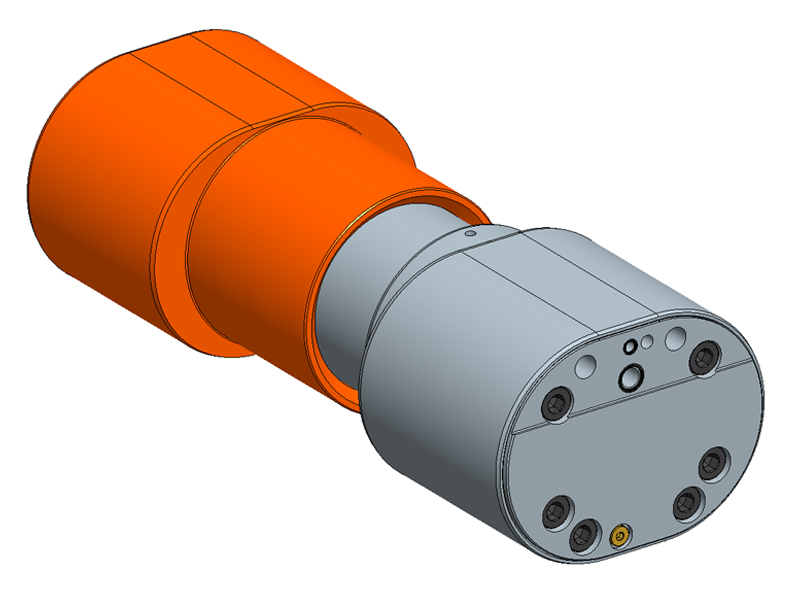

Processing roll bending cylinder blocks, processing roll support balancing cylinder blocks, pressing cylinder blocks, as well as 1-cylinder, 2-cylinder, 3-cylinder, 4-cylinder, and 5-cylinder blocks. We also offer elliptical plunger cylinder blocks, universal cylinder blocks, and customized designs based on specific technical requirements. These products are known for their reliability, high-pressure and high-speed impact resistance, and long service life.
The following are several examples of cylinder blocks:
1. Four-cylinder roll bending cylinder block
Technical parameters:
Cylinder diameter: 260; rod diameter: 220; stroke: 560; 2 sets
Cylinder diameter: 260; rod diameter: 220; stroke: 111; 2 sets
Operating pressure: 29 MPa; test pressure: 3 7 MPa
2. Balance cylinder + roll bending cylinder
Technical parameters:
Cylinder diameter: 85; rod diameter: 60; stroke: 160; 1 set
Operating pressure: 14 MPa; test pressure: 21 MPa
Cylinder diameter: 85; rod diameter: 60; stroke: 28; 1 set
Operating pressure: 21 MPa ; test pressure: 27 MPa
Cylinder diameter: 60; rod diameter: 42; stroke: 48; 2 sets
Operating pressure: 21 MPa ; test pressure: 27 MPa
3. Steel coil cart lifting hydraulic cylinder
Technical parameters:
Cylinder diameter: 160; rod diameter: 100; stroke 500; 1 set
Cylinder diameter: 110; rod diameter: 70; stroke: 600; 2 sets
Operating pressure: 25MPa; test pressure: 31.5MPa
4. Three-hole upper middle roller cylinder block
Technical parameters:
Cylinder diameter: 85; rod diameter: 55; stroke: 80; 2 sets
Operating pressure: 18 MPa ; test pressure: 21 MPa
Cylinder diameter: 56; rod diameter: 40; stroke: 82; 1 unit
Operating pressure: 10 MPa; test pressure: 15 MPa
5. Processing roll bending device
Technical parameters:
Cylinder diameter: 100; rod diameter: 70; stroke: 60; 1 unit
Cylinder diameter: 100; rod diameter: 70; stroke: 42.5; 1 unit
Operating pressure: 21 MPa; test pressure: 31 MPa
6. Roll bending cylinder
Technical parameters:
Cylinder diameter: 220; rod diameter: 180; stroke: 1800
Operating pressure: 24 MPa; test pressure: 30 MPa
